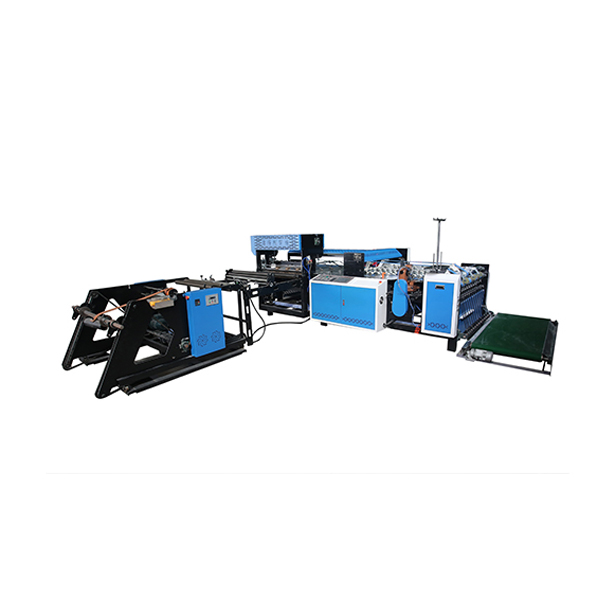

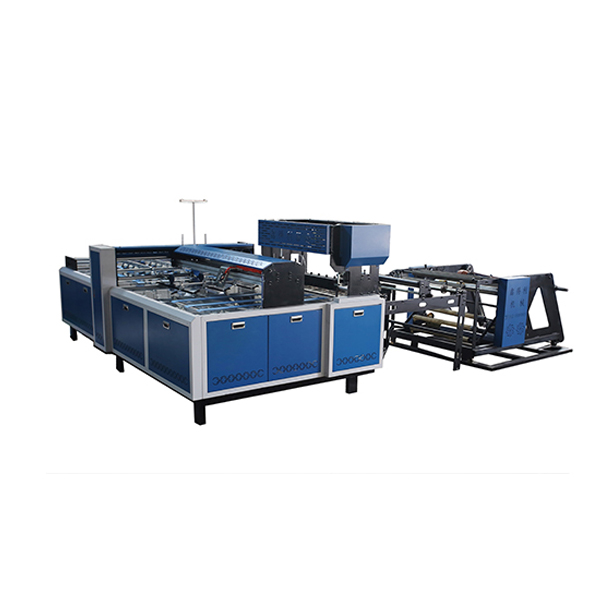

DLQF800 High-Speed Blunt Knife Cold Cutting Machine
The high-speed blunt-blade cold-cutting and sewing integrated machine is a new generation of integrated equipment designed for the large-scale production of woven bags. Its core technological highlight is "high-speed operation + blunt-blade cold cutting," integrating automatic feeding, precise hemming, smooth cutting, and robust sewing throughout the entire process. Unlike traditional hot or sharp-blade cutting methods, it uses a specially designed blunt blade combined with a cold-state cutting principle to achieve melt-free edge cutting of woven bags during high-speed operation. Simultaneously, through an integrated mechanical transmission system, it completes the fully automated operation from roll material input to finished product output.
DLQF800 High-Speed Blunt Knife Cold Cutting MachineDevice functions
1. Hot and cold conversion, completed with one click.
2. Electric automatic feeding
3. Automatic correction
4. Color mark tracking, servo-controlled precise control of bag length and conveying
5. Smokeless knife device, automatic pinching, easy-to-open bag opening
6. Free switching between forward and reverse tracking
7. PLC centralized control, touch screen for setting, displaying, recording, storing, and recalling data.
8. Variable frequency speed control, automatic adjustment of cutting and sewing speed
9. Automatic counting, bag stacking, and constant displacement.
10. Automatic thread breakage alarm and machine stop of the sewing machine
11. Bag pressing, thread cutting, flipping, displacement, electric control, stable operation, and low failure rate.
12. The robotic arm moves vertically and horizontally simultaneously, resulting in good stability.
Main basic parameters
Tube cloth diameter |
≤1400mm |
Cutting bag width |
≤800mm |
Cut bag length |
≤400-1350mm |
Cutting speed |
30-60pcs/min |
Sewing stitch length |
5-14mm |
Hem width |
15-30mm |
weight |
2.5T |
Overall dimensions |
5000*7000*1500mm |
power |
10KW |
