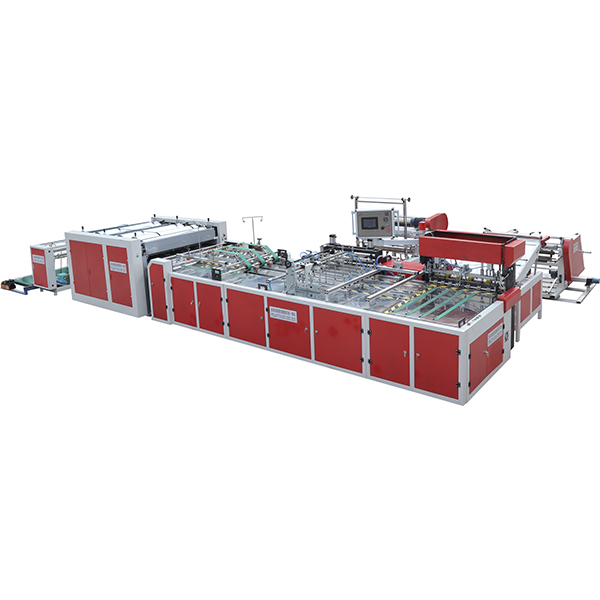

Cutting, sewing, printing and collecting integrated machine

Introduction to the Cutting, Sewing, Printing and Collecting Integrated Machine

Technical performance:

1. This machine is suitable for woven bags, coated bags, and non-coated bags;

2. EPC automatic correction, high-precision automatic cutting of woven bags;

3. Heat cutting of woven bags enables automatic double-sided bag opening peeling;

4. Automatic sealing, film application, and cutting of the inner membrane;

5. Automatic bottom sewing of outer bags (inner and outer bags can be sewn together or not), automatic bag collection and counting;

6. This machine adopts a fully automatic PLC control system with a touch screen for data display/recording/setting and servo drive. It features both cold and hot blade operation, which can be freely switched.

7. This machine is easy to operate and can be operated by a single person.

Suitable for: inner bags for ordinary bags, inner bags for laminated bags, inner bags for paper-plastic bags, inner bags for feed bags, inner bags for fertilizer bags, etc.

8. Can cut seams, cut seam marks, cut loop seam marks

Technical parameters:

Item Parameters

Fabric roll (outer bag) width: 350 – 650 mm

Outer bag cutting length: 600 – 1200 mm

Outer bag width compared to inner bag +20 mm

Inner membrane thickness ≥0.01 mm

Cutting accuracy ± 1.5 mm

Hem width 15-30 mm

Needle pitch 7.0 - 12 mm

Production speed: 28 - 33 pcs/min

Printing press colors (optional): 1-5 colors
