High-speed hot and cold cutting machine
Device functions:
Hot and cold conversion, completed with a single click;
Electric automatic feeding;
Automatic correction;
Color mark tracking, servo-controlled precise control of bag length and conveying;
Smokeless knife device, automatic pinching, easy-to-open bag opening;
Free conversion between forward and reverse tracking;
PLC centralized control, touch screen for setting, displaying, recording, storing and recalling data;
Variable frequency speed control, automatic adjustment of cutting and sewing speed;
Automatic counting, bag stacking, and constant displacement;
The sewing machine automatically alarms and stops if the thread breaks.
Bag pressing, thread cutting, flipping, displacement, electric control, stable operation, and low failure rate;
The robotic arm moves vertically and horizontally simultaneously, resulting in good stability.

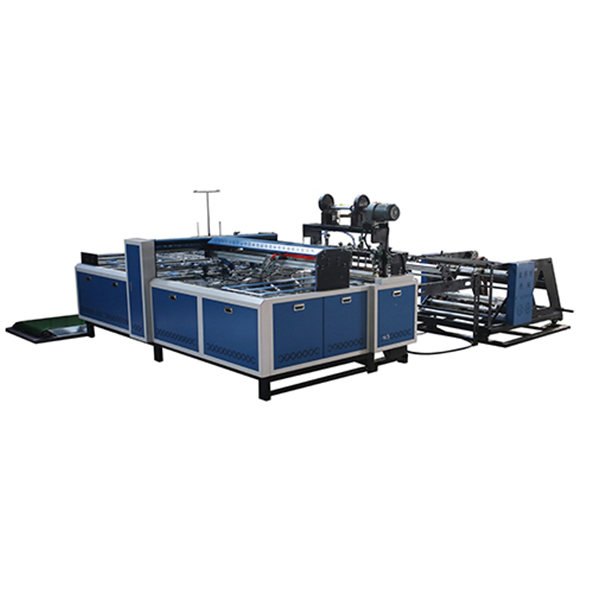

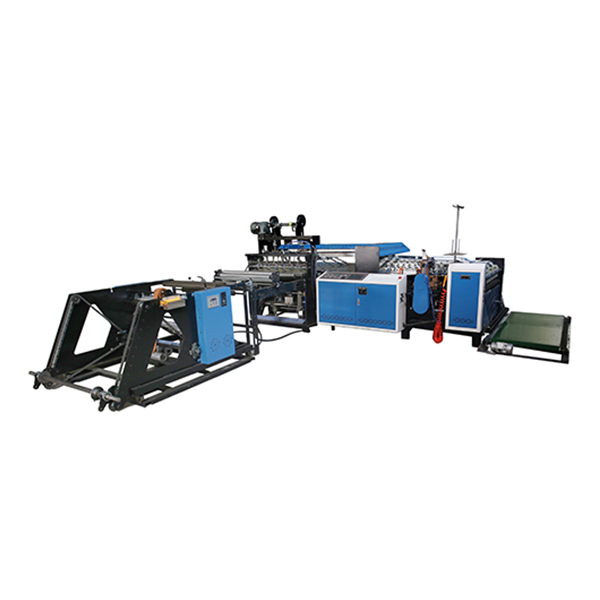

GRLQF800 High-Speed Hot and Cold (Large Blade Conversion) Cutting Machine
Device functions:
Hot and cold conversion, completed with a single click;
Electric automatic feeding;
Automatic correction;
Color mark tracking, servo-controlled precise control of bag length and conveying;
Smokeless knife device, automatic pinching, easy-to-open bag opening;
Free conversion between forward and reverse tracking;
PLC centralized control, touch screen for setting, displaying, recording, storing and recalling data;
Variable frequency speed control, automatic adjustment of cutting and sewing speed;
Automatic counting, bag stacking, and constant displacement;
The sewing machine automatically alarms and stops if the thread breaks.
Bag pressing, thread cutting, flipping, displacement, electric control, stable operation, and low failure rate;
The manipulator moves up and down at the same time, providing good stabilization effect.
Main basic parameters:
Tube cloth diameter |
≤1400mm |
Cutting bag width |
≤800mm |
Cut bag length |
≤400-1350mm |
Cutting speed |
30-60pcs/min |
Sewing stitch length |
5-14mm |
Folding width |
15-30mm |
weight |
2.5T |
Overall dimensions |
5000*7000*1500mm |
power |
10KW |
