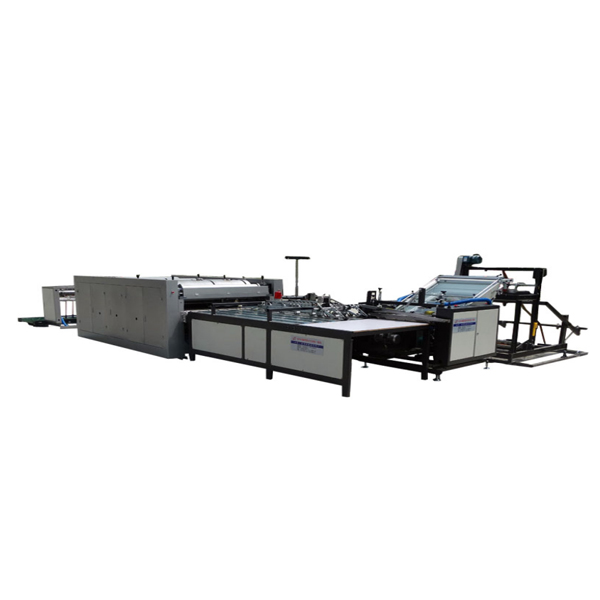

Cold cutting, sewing, printing and receiving integrated machine (horizontal printing)

RQFY-850DH Woven Bag Heat Cutting, Sewing and Printing Integrated Machine Features:

Electric automatic feeding

• Automatic course correction (optional)

• Color mark tracking, servo-controlled precise control of bag length and conveying

·Free conversion of positive and negative chasing marks

• PLC centralized control, touch screen for setting, displaying, recording, storing, and recalling data.

• Variable frequency speed control, automatic adjustment for cutting, sewing, and printing

Automatic counting, bag stacking, and constant displacement.

• The sewing machine automatically alarms if the thread breaks and stops.

• Flue gas recovery unit (optional)

• Can be used for single cutting, cutting and stamping, slit cutting, and slit cutting and stamping in one step.

Main technical parameters:

• Fabric unwinding diameter ≤Ø1400mm

• Bag cutting width ≤ 850mm

• Bag cut length: 500-1300mm

• Cutting speed: 20-40 pcs/min

• Sewing stitch length: 5-14mm

• Bottom hem width: 16-30mm

• Printing colors (optional) 1-5 colors

Power: 7KW

Whether an equipment is innovative or otherwise, it is all about improving equipment quality, creating greater benefits, and producing more production value. This includes packaging machinery safety issues. The situation in this regard is severe. In addition to the management issues of the company itself, the reason for this is that the country's management of this industry and the lack of social restrictions on all aspects are more important. The deep-seated issues and factors revealed from this superficial phenomenon are also worthy of consideration and attention by relevant departments. For example, in terms of industry management, companies engaged in food plastic packaging are not included in the scope of food industry hygiene management. As a result, when these companies produce plastic materials for food packaging, they are equivalent to producing products for industry, agriculture and other purposes. There are no regulations and controls on health and safety. For example, there are no special or specific requirements for the production environment, personnel health, selection of raw materials, production process control, product inspection and detection methods, etc., and safety and health are out of control.

On the other hand, packaging machinery pursues the integration of packaging and processing. There are many new packaging technologies based on new packaging thinking. New packaging thinking means transcending existing packaging technologies and products, and applying other related technology combinations to packaging to form new packaging technologies. This includes packaging cutting and forming technology, packaging solidification technology, packaging function protection technology, packaging and processing combination technology, and packaging function borrowing technology. In addition to the ones mentioned above, there should be other technologies, such as packaging technology for live products. In addition, with the emergence of new packaging materials, some technologies in the packaging process have also undergone new changes. For example, the emergence of self-drying stretch wrapping film has integrated the wrapping, shrinking, bundling and other processes into one, making the operation simpler and faster. This kind of integration of packaging and processing solves many processing techniques and directly borrows the packaging mechanism to realize the integration of packaging and processing, making packaging more potential and effective.
