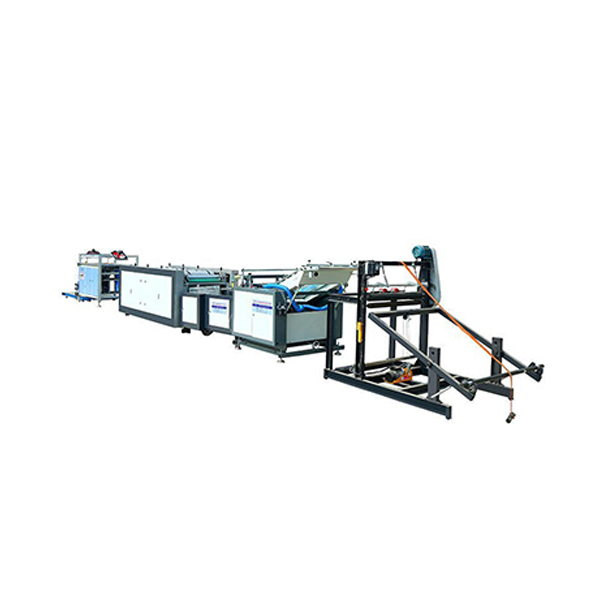

Woven bag cutting, printing and collecting machine

ROYS-800 woven bag hot-heating printing and collecting machine

Features of this machine:

Electric automatic feeding

• Manual correction (automatic optional)

• Color mark tracking, servo-controlled precise control of bag length and conveying

• Advanced heat-cutting and heating process, prevents bag opening from sticking, and makes it easy to open.

·Free conversion of positive and negative chasing marks

·Automatically complete the fixed-length cutting, printing, bag folding and positioning of tube cloth

• Variable frequency speed control, automatic adjustment of cutting and printing speed

• Automatic inking system (optional)

·The whole machine adopts transmission shaft. One-touch start and stop of the transmission, convenient and easy to operate

• Hot-cutting printing fume recovery device (optional)

Main technical parameters:

• Fabric unwinding diameter ≤ 0.1400mm

• Bag cutting width ≤ 850mm

• Bag cut length: 400-1300mm

• Cutting speed: 30-60 pcs/min

• Printing colors: 1-5 colors

Power: 3KW

The Current Status and Development Direction of Woven Bag Equipment, Plastic Woven Bags, and Woven Bag Machinery: In the late 1970s, my country introduced plastic woven bags, followed by weaving equipment. Woven packaging, with its advantages of durability, low cost, and simple manufacturing process, was rapidly adopted in many fields, especially for large-capacity transport packaging. The use of plastic woven bags for cement packaging began in 1982. Hundreds of woven bag production lines were imported from different countries, including a dozen or so relatively complete and advanced sets of equipment. From the mid-1980s, Zhejiang and Jiangsu provinces in my country successively developed domestically produced equipment and launched it on the market in large quantities, making a significant contribution to the development of my country's woven bag equipment and plastic woven packaging industry.

In the 1990s, plastic woven packaging developed rapidly. By 1995, the number of plastic woven bags used for cement packaging reached 5.6 billion, accounting for two-thirds of the total cement packaging that year. The implementation of the "Cement Packaging Bag" standard has given another boost to the development of plastic woven bag manufacturing companies and plastic woven bag equipment manufacturing industries. Plastic woven factories and plastic woven equipment manufacturers of various grades have sprung up like mushrooms after a rain. However, judging from the overall industrial structure and scale of the plastic weaving industry, there is a phenomenon of being scattered and small. Most companies have only one production line. Due to the small scale of the enterprise and insufficient production capacity, it is difficult to integrate with international standards, form a series of knitted products, and achieve technological innovation. In recent years, many entrepreneurs have seen this and formed plastic weaving groups. In some areas, loose cooperative organizations such as plastic weaving cities have emerged. After years of survival of the fittest, some enterprises with certain advantages, sound management and effective innovation have been able to gain a foothold and achieve development, while many weak enterprises have also withdrawn from the industry.
